Where coordinates take shape: CNC technology

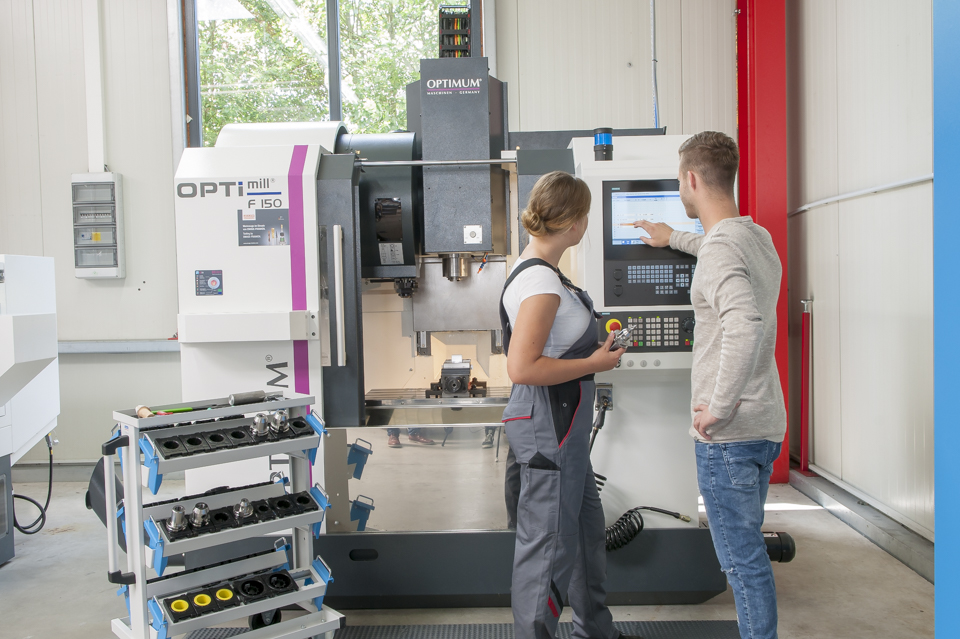

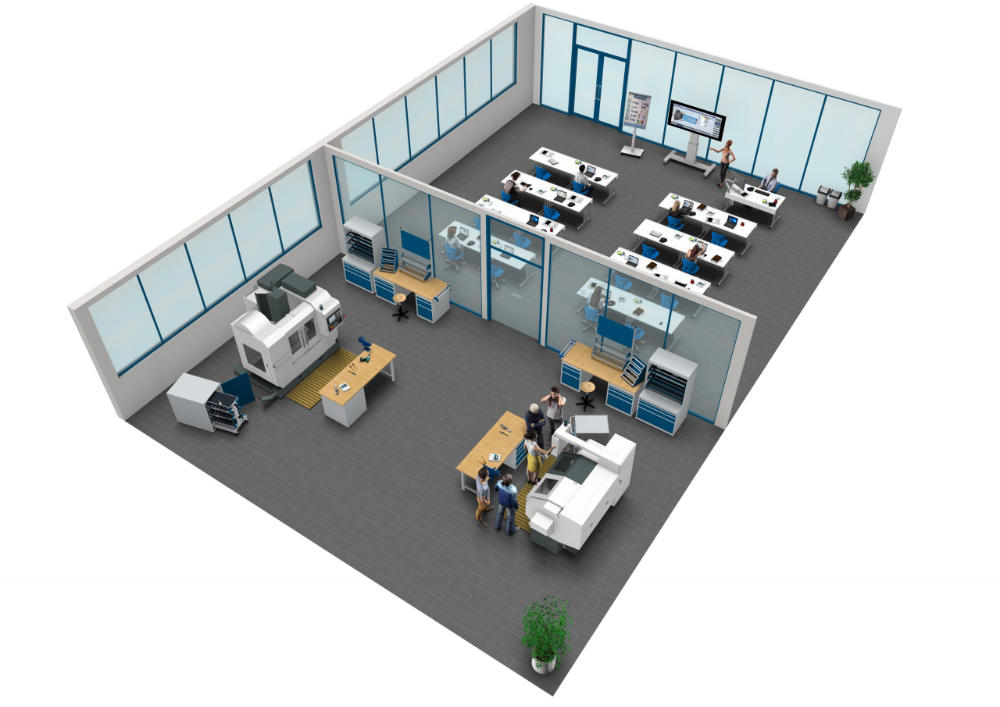

In the training lab for CNC technology, metal technology trainees learn the basic skills of CNC programming and manufacturing on CNC tool machines. The centrepiece of this room is two CNC machines with SIEMENS control systems for milling or turning. Computer workstations, which can be equipped with CAD/CAM systems, are available for set-up and simulation of the CNC programmes.

In this training lab, all work steps of modern CNC technology can be taught in a realistic and practical setting – from the idea to the finished workpiece. The equipment enables you to execute your own metal processing projects. Corresponding didactic material ensures sustainable learning successes.

Learning objectives

  • Work plan, tool plan, set-up sheet

  • Design and function of CNC machines

  • Coordinate systems, reference points, geometry data, technology data

  • Programme architecture

  • Tool correction

  • Commissioning

Specifications

  • approx. 216 m²

  • 16 trainees

Suitable for

  • Metal professions

X

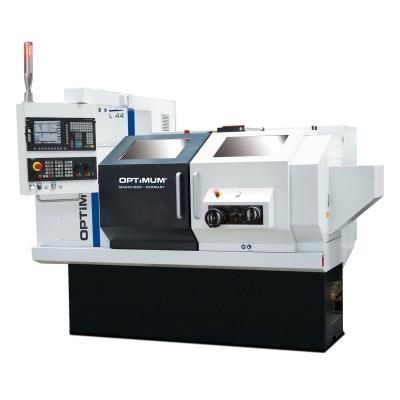

with Siemens Control SINUMERIK 828D
X

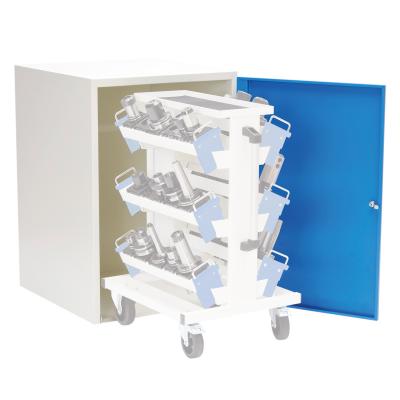

705 x 736 x 1.019 mm
X

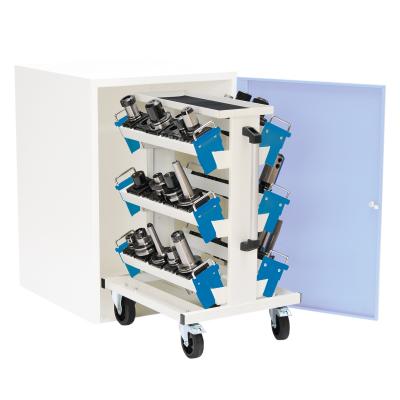

560 x 630 x 950 mm
X

Due to regional legal differences, we would like to note that it is possible that not all products depicted are available for every region. In this case, we will be happy to advise you personally and find a suitable individual solution.

More equipment suitable for this training lab is available here

Didactics suitable for this training lab

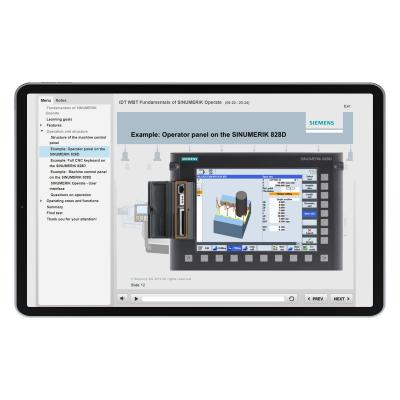

Learn the basics of CNC technology

Technical know-how and didactic knowledge for beginners and advanced learners
