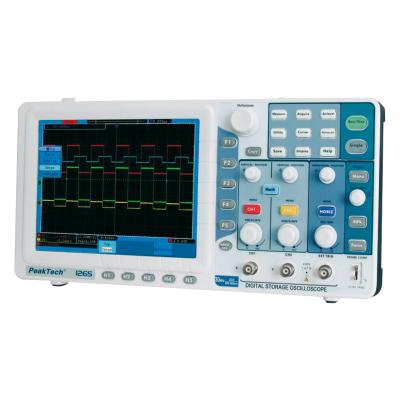

2-channel digital storage oscilloscope

2-channel digital storage oscilloscope
30 MHz, Peaktech 1265

Item No.: 59442
Add to wish list

Latest generation digital storage oscilloscope with high-resolution colour display, backlighting, high bandwidth and measurement rate, large internal data memory and USB connection.

Ideal for training thanks to the VGA port for an external monitor or projector and the LAN port for remote access via the network. Its low weight (1.6 kg) also makes it ideal for service use.

  • High-resolution 20 cm (8") TFT colour display with 800 x 600 pixels and 65,536 colours
  • USB port for real-time data transfer or for reading out the internal memory
  • VGA output for connecting an external monitor
  • LAN port for remote access via the network
  • Measurement values and graphics can also be saved directly to a USB stick
  • Autoset and autoscale function for user-friendly operation
  • Internal memory of 10 k points per channel or 15 waveforms
  • 20 automatic measurement modes and FFT function
  • PASS/FAIL function
  • Safety: EN 61010-1; CAT II
  • Included accessories: 2 BNC cables, Pass/Fail adapter, USB cable, software CD for Windows 2000/XP/VISTA/7/8/10, power cable, 2 probes and operating instructions
  • Bandwidth 30 MHz
  • Display 20 cm (8”) TFT with 65,536 colours
  • Resolution 800 x 600 pixels
  • Channels 2 CH
  • Sampling rate per channel 125 MSa/s

Input:

  • Input coupling AC, DC, GND
  • Input resistance 1 MΩ +/- 2% in parallel with 15 pF +/- 5 pF
  • Max. input voltage 400 V DC or ACss

Vertical section:

  • Vertical sensitivity 2 mV - 10 V/Skt.
  • Rise time 11.7 ns
  • DC accuracy +/- 3 %
  • Vertical resolution 8 bits (2 CH simultaneously)

Horizontal section:

  • Horizontal scale 5ns - 100s/div.
  • Measuring range 0.5 Sa/s ~ 250 MSa/s

Trigger section:

  • Trigger type Edge/Video/Pulse/Slope
  • Trigger mode Auto, Normal, Single
  • Trigger coupling DC, AC, LF, HF

Measurement functions: 20 automatic measurements:

peak-peak, cycle RMS, Vmax, Vmin, Vtop, Vbase, Vamp, overshoot, preshoot, rise time, fall time, +width, -width, +duty, -duty, delay A→B (rising), delay A→B (falling), frequency, period, min, max, FFT

  • Memory 10,000 points/CH
  • Interfaces USB, USB flash disk, VGA, LAN
  • Operating voltage 100 ~ 240 V AC eff; 50/60 Hz
  • Dimensions (WxHxD) 355 x 178 x 118 mm
  • Weight 1.6 kg
