Function module Magazine Unit Type 1

Function module Magazine Unit Type 1

Item No.: 30540000
Add to wish list

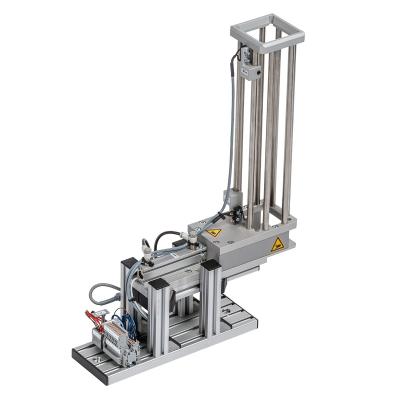

The Magazine Unit Type 1 separates workpieces for further processing. Cube halves are used workpieces for this.The storage of the Magazine Unit Type 1 holds up to ten stacked workpieces. A pneumatic cylinder activated by a 5/2 way valve pushes the lowest workpiece out of the pile. Two micro switches check the load status of the magazine, and two reed switches monitor the position of the pneumatic cylinder. The operating pressure equals 4 bar, and the operating voltage equals 24 VDC.
