Function module Conveyer Belt Assembly Kit

Function module Conveyor Belt
Assembly Kit

Item No.: 40799
Add to wish list

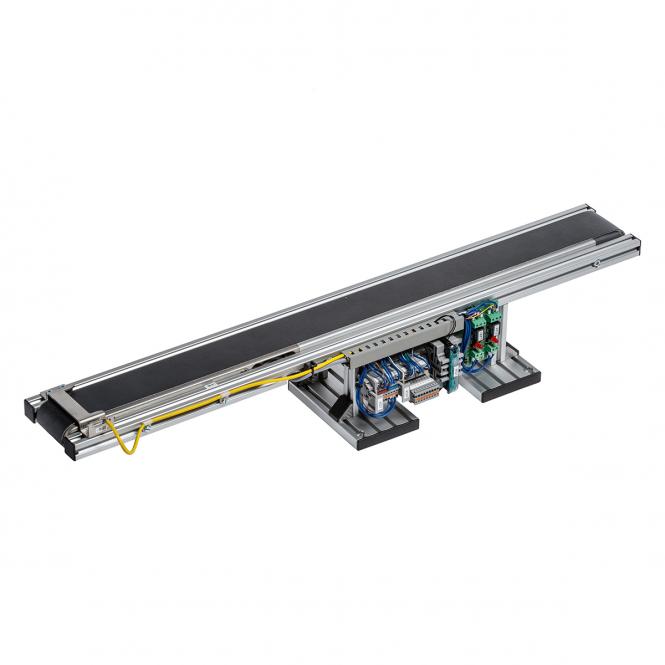

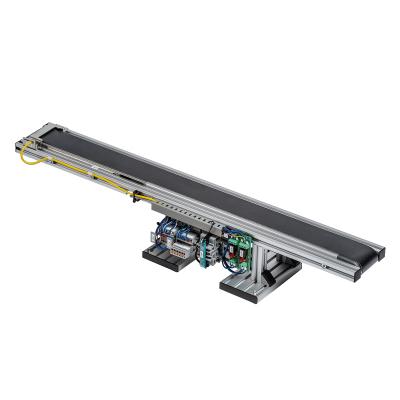

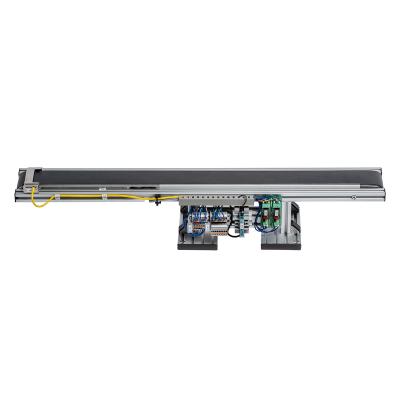

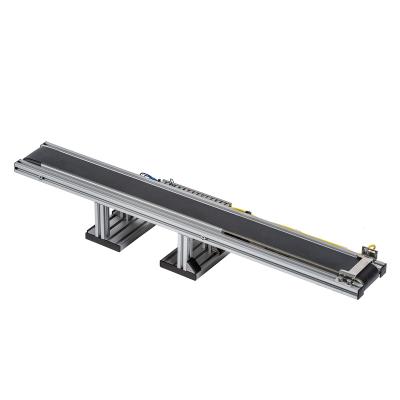

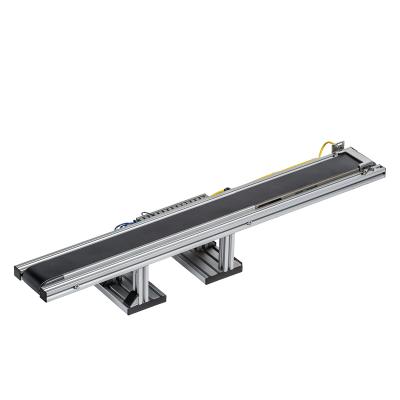

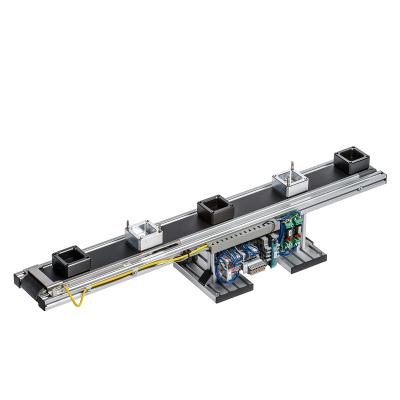

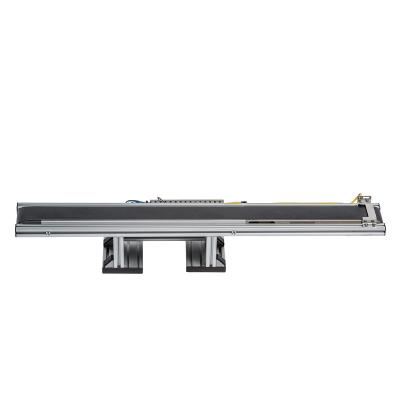

The Function module Conveyor Belt consists of a 700 mm long and 50 mm wide belt section. A sensor is mounted at the end of the conveyor belt section. The Conveyor Belt is equipped with a DC motor including integrated speed controller. This allows infinitely variable speed control as well as a change of direction of rotation. Other belt lengths are available on request in increments of 100 mm.

  • Work planning, technical communication
  • Assembly work
  • Structure of electrical control system
  • PLC programming Control of electric drives
  • Commissioning of mechanical and electrical systems
  • Troubleshooting
  • Automation of work processes

Function module as Assembly Kit

The Function module is supplied as an Assembly Kit with pre-prepared material including accessories. The Function module must be installed and wired according to the specifications of the mMS media centre.

Dimensions: 740 x 145 x 130 mm (L x W x H)

Operating voltage: 24 VDC

Components:

  • DC motor incl. integrated speed controller
  • Light guide sensor

Requirements for the PLC:

  • 2 x Digital Inputs
  • 3 x Digital Outputs
  • 1 x Analog Output

Electrical Connection:

  • Plug-in terminal spring-cage 10-pole max. 1.5 mm² (9 terminals occupied)

Cable accessories:

  • 1 x connecting Cable 12 x 0.34 mm²
