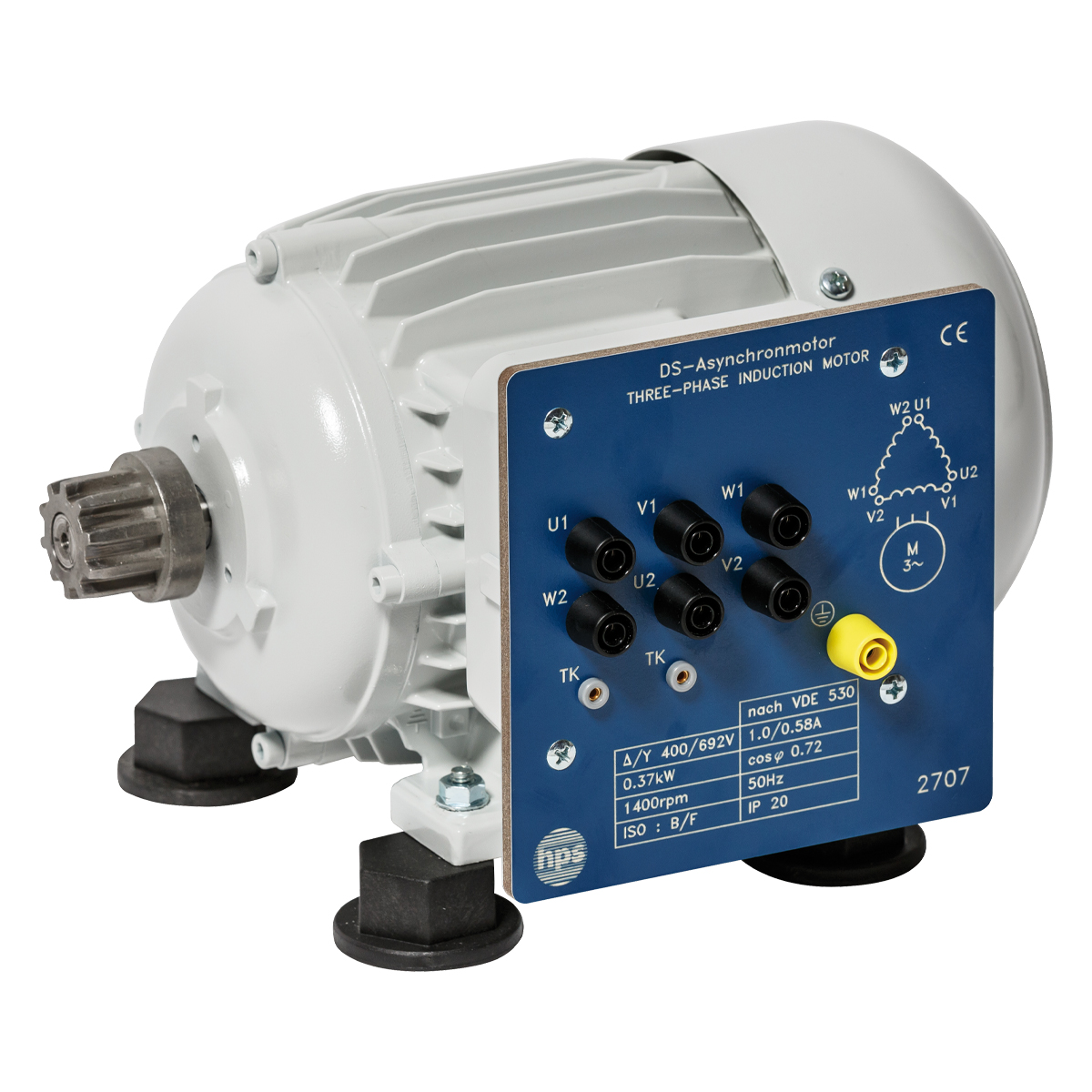

Three-phase Asynchronous Motor

Three-phase Asynchronous Motor

Item No.: 52757
Add to wish list
  • Terminal boards, printed with the corresponding symbols.
  • Connections: 4 mm safety sockets (thermal contact: 2 mm sockets)
  • Colour: light grey (RAL 7035)
  • All machines are mounted on four machine feet and fitted with a coupling half.
  • To protect against thermal overload, all machines have thermal contacts.
  • Power: 0.37 kW
  • Speed: 1400 rpm
  • cos: 0.72
  • Star connection: 692 V / 0.58 A
  • Delta connection: 400 V / 1 A
  • Dimensions (W x H x D in mm): 250 x 160 x 215
  • Weight: ca. 7,1 kg
