The EDUSAFE training system from Christiani provides you with optimal support in teaching machine safety. It enables you to thoroughly prepare your trainees, students, or employees for the new requirements regarding safety functions for machines and machine systems in the industrial sector, as specified in DIN EN ISO 13849-1, for application in accordance with the Machinery Directive 2006/42/EC. Of course, the EDUSAFE training system can also be used to develop and test safety functions based on the categories defined in DIN EN 954-1.

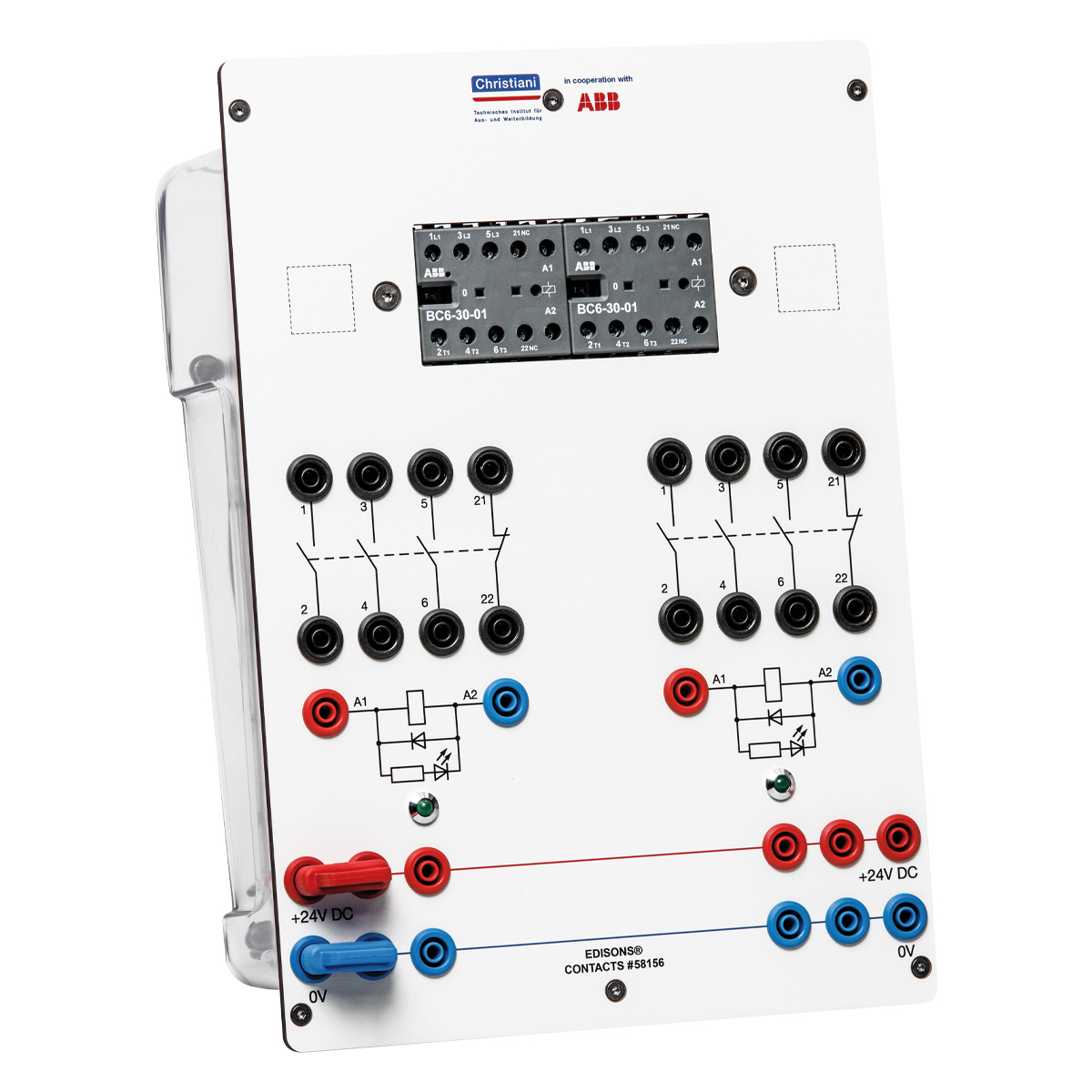

Contacts Teaching Panel:
- 4 contacts each (3 NC, 1 NO)
- Control voltage: 24 V DC
- Front panel size: A4
- Transparent desktop enclosure
- 19 mm jumper plugs (without center tap): 1 x red, 1 x blue A4 training panel for use in an A4 experiment frame, e.g., on a lab bench
The layout and design of Christiani training panels provide excellent clarity, achieved through spatially separated and color-coded voltage zones.
Training companies and schools in the skilled trades and industry within the electrical engineering sector Learning Area 8, in the following occupations:
- Electronics Technician for Automation Technology: Selecting and integrating drive systems
- Electronics Technician for Industrial Engineering: Selecting and integrating drive systems
- Electronics Technicians for Energy and Building Technology: Select and integrate drive systems
- Electronics Technicians for Building and Infrastructure Systems: Expand building technology systems based on business management considerations
- Electronics Technicians for Devices and Systems and Systems Electronics Technicians: Manufacture and test devices
- Electronics Technicians for Machinery and Drive Technology: Integrate electrical machines and mechanical components
Dimensions (L x W x H): 210 x 297 x 96 mm Rated control voltage (Uc): 24 V DC Rated operating current AC (Ie): (24 V) 4 A, (120 V) 4 A, (500 V) 2 A, (220 / 240 V) 4 A, (380 / 400 V) 3 A Rated operating current DC (Ie): (24 V) 2.5 A, (110 V) 0.7 A, (220 / 240 V) 0.4 A
- Learning Board CONTACTS
- 19 mm bridge connectors (without center tap): 1x red, 1x blue
