The EDUSAFE training system from Christiani provides you with optimal support in teaching machine safety. It enables you to prepare your trainees, pupils, students, or employees optimally for the new requirements for safety functions for machines and machine systems in the industrial sector in accordance with DIN EN ISO 13849-1 for application with the Machinery Directive 2006/42/EC. Of course, the EDUSAFE teaching system can also be used to set up and test safety functions in accordance with the categories specified in DIN EN 954-1.

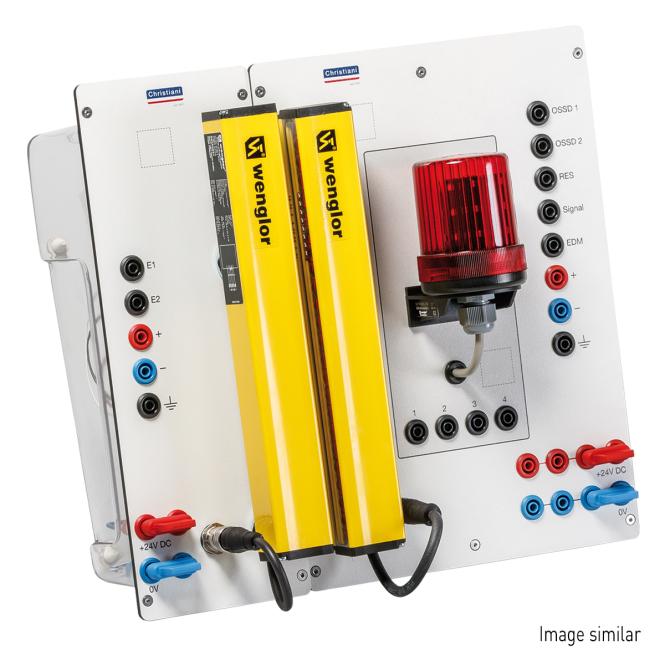

Active optoelectronic protective device with transmitter and receiver. Set up safety functions using a light curtain (category “non-separating protective device”). Includes indicator light to show operating status. Transmitter and receiver are magnetically attached so that alignment can also be performed.
Non-separating protective devices with light curtains
Training companies and schools in the skilled trades and industry in the electrical engineering sector
- Electronics technician for automation technology: Selecting and integrating drive systems
- Electronics technician for industrial engineering: Selecting and integrating drive systems
- Electronics technician for machines and drive technology: Integrating electrical machines and mechanical components
- Detection zone height: 250 mm
- Resolution: 14 mm
- Includes indicator light on the receiver unit
- Operating voltage: 24 V DC
- Transmitter unit dimensions: 120 x 300 x 105 mm
- Dimensions of receiver unit: approx. 150 x 300 x 157 mm
- Weight: approx. 1.5 kg
1 EDUSAE AOPD Learning Panel, consisting of a panel with a transmitter and a panel with a receiver
