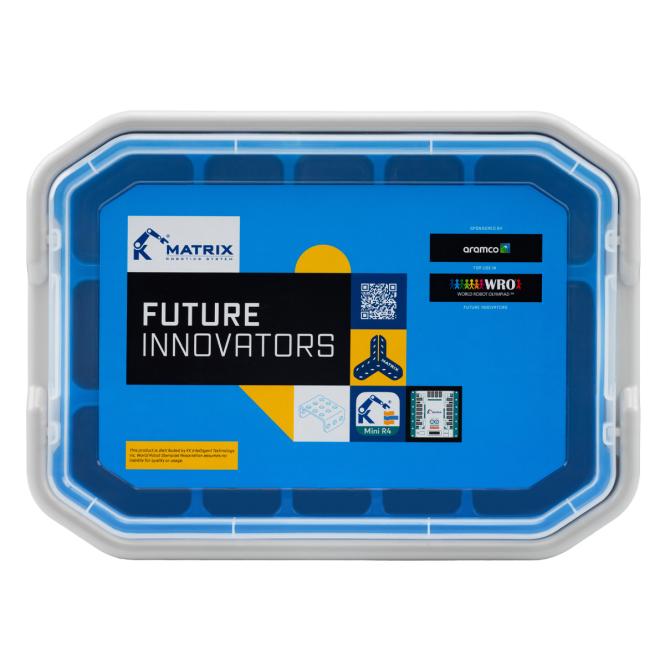

The versatile robotics set for creative STEM lessons and competitions This robotics set offers everything you need to introduce students to robotics, programming and smart technologies in a hands-on and playful way. Whether in the classroom or at the World Robot Olympiad (WRO) - the combination of powerful hardware and intuitive software enables creative projects and hands-on learning. The set includes the MATRIX Mini R4 Controller, which is powered by the Arduino UNO R4 Wi-Fi and offers seamless connectivity for advanced projects.
Intuitive programming with MATRIXBlock The MATRIXBlock graphical programming platform, based on Scratch, provides an easy introduction to coding. The software offers a seamless transition from block-based programming to C++. An integrated serial port monitor supports debugging and encourages a better understanding of code structures.
Smart sensors and intelligent camera technology The set includes a selection of MATRIX sensors and the powerful MATRIX M-Vision camera, which enables numerous interactive use cases:
- Recognize and distinguish objects
- Detect and track movements
- React to changes in the environment These functionalities make it possible to implement practical projects on artificial intelligence (AI) and the Internet of Things (IoT) - both in the classroom and in competitions.
- Intuitive introduction: The MATRIXBlock graphical programming platform makes it easy to get started with programming.
- Seamless transition: From block-based programming to advanced programming languages such as C++.
- Expandability: With its powerful controller and numerous sensors, the set enables creative and advanced projects that can be used both in the classroom and in competitions.
- Promotion of AI and IoT: The set supports practical projects on topics such as artificial intelligence (AI) and automation.
- Teaching platform: Additional offer of specially developed learning resources for teachers and students to support and deepen learning.
- Encourage problem-solving skills
- Block and text-based programming
- Encourage STEM skills
- Preparing for competitions such as the World Robot Olympiad
- Encourage teamwork and creative innovation
- For students and participants of World Robot Olympiad (WRO) category Future Innovators

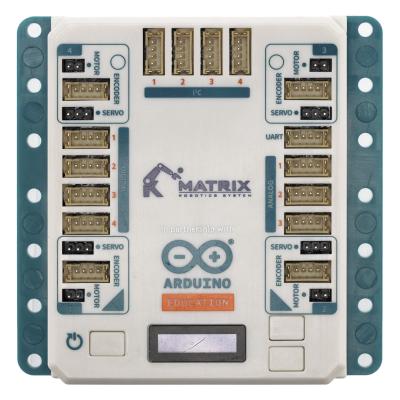

- MATRIX Mini R4 Controller
- M-Vision Cam
- 2x DC motor with encoder
- 2x DC motor
- 2x servo motor
- 2x color sensor
- Grayscale sensor
- 2x laser sensor
- 2x miniature switch
- Temperature and humidity sensor
- PIR sensor
- Potentiometer
- Water level sensor
- Water temperature sensor
- Soil moisture sensor
- Gesture sensor
- 10x JST cable 200mm
- 10x JST cable 400mm
- 10x JST cable 600mm
- 10x JST to Grove cable
- Battery box (batteries not included)
- various components
- Processor: STM32H7
- Clock:480Mhz
- Flash Memory: 2Mbyte (user available program storage space not less than 100Kbyte)
- SPAM: 1Mbyte
- Maximum Supported Resolutions: 640*480 and under
- Operating Voltage: 5V
- Operating Current: 200mA (without fill-in light activated), 350mA (with fill-in light activated)
- Port: USB Type-C, PH2.0-4P (UART communiation)
- Fixing hole: M4*2
- Note:1Mbyte = 8Mbit
