Mobile Wallbox-Case

Mobile Wallbox-Case
Charging Station

Item No.: 13429
Add to wish list

The charging station Mobile Wallbox case is a fully functional charging station for pure electric and plug-in hybrid vehicles with Menneke's Type 2, Mode 3 charging standard. It has been specially developed as a charging station for training and demonstration purposes, ready for indoor and protected outdoor use.

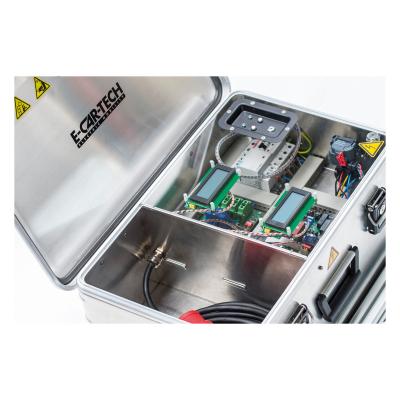

The system is divided into an RCD and a charge control unit. The respective operating information of each unit is displayed on a separate display instrument.

The RCD monitors the AC and DC residual currents as well as the voltage of the individual phases and shows these on the display.

The charge control unit communicates with the vehicle based on the Mennekes Type 2 Mode 3 standard. It controls the locking and unlocking of the charging plug and the charging current.

The display shows:

  • the type of charging cable used
  • the current charging current
  • the current communication status between charging station and car

Main features:

  • Safety:
    • integrated residual current circuit breaker (RCD) type B
    • automatic unlocking in case of power failure
    • Limitation of charging current
  • Simple and uncomplicated:
    • Plug and Play
    • intuitive handling

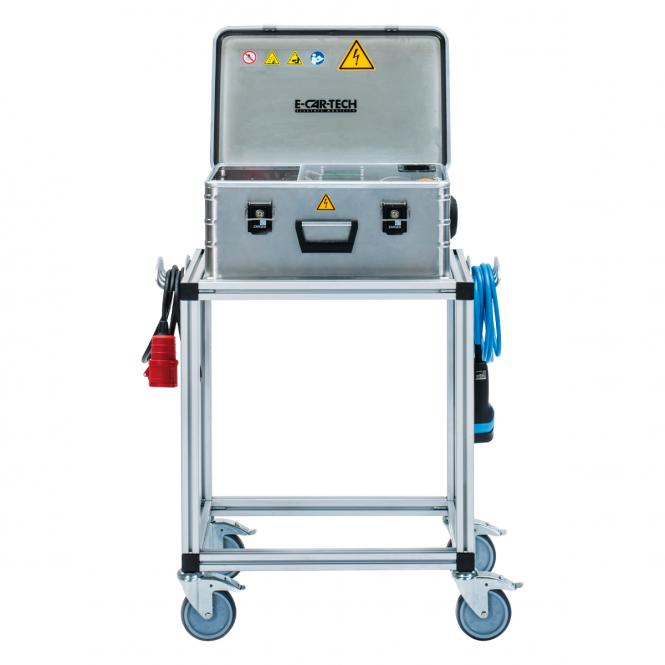

    • easy transport in a robust aluminium case (mobile underframe is not included)

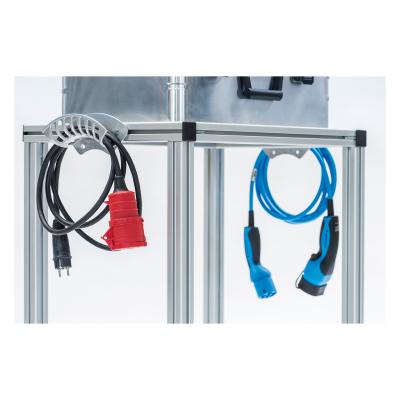

    • Storage space for mains and charging cables in case
  • Flexible and effective:
    • Use of own electricity (PV, CHP, etc.)
    • Fast charging up to 22 kW
    • 1-phase and 3-phase charging
