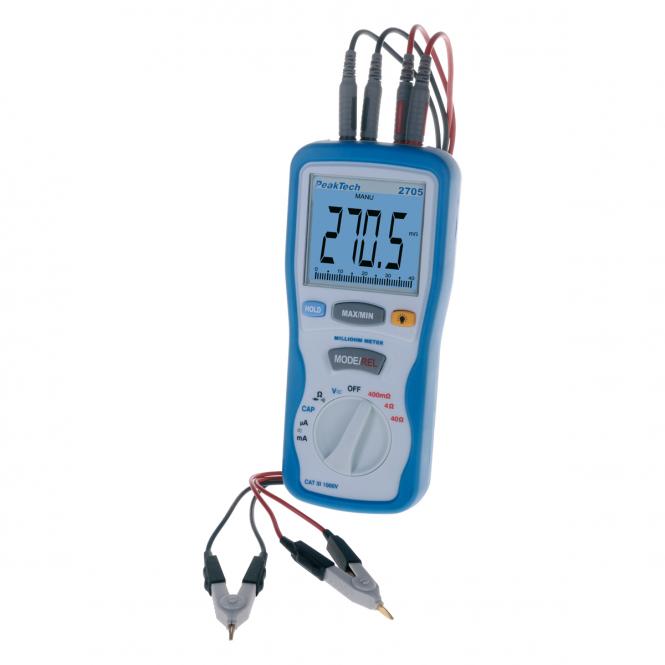

Digital Milliohmmeter

Digital Milliohmmeter
with voltage, resistance and capacitance measurement

Item No.: 58518
Add to wish list

The measuring range from 100 uOhm to 40 ohm makes it possible to measure the resistance of motor coils, generators and transformers as well as switches, relays and contacts. The 4-wire measuring method allows resistance values in the milliohm range to be measured precisely and, for example, the quality of plug-in and screw connections to be assessed.

  • Milliohm measuring ranges: 400 mOhm/4/40 Ohm
  • Test current: 200 mA/ 20 mA/ 2 mA
  • Voltage measurement: 1000 V AC/DC
  • Current measurement: 400 mA AC/DC
  • Resistance measurement up to 40 mOhm
  • Capacitance measurement up to 40 mF
  • Diode and continuity test function
  • El. safety: EN-61010-1 CAT III 1000 V
  • 4-pole Kelvin test leads, test leads with 2 mm tips, case and operating instructions
  • incl. batteries 6 x AA-Mignon
