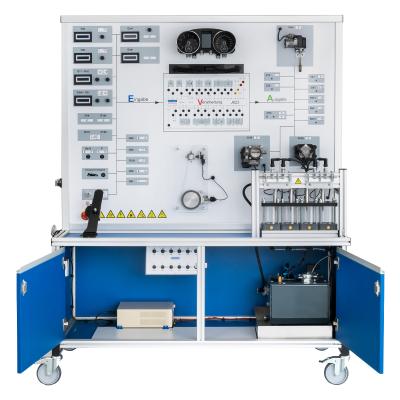

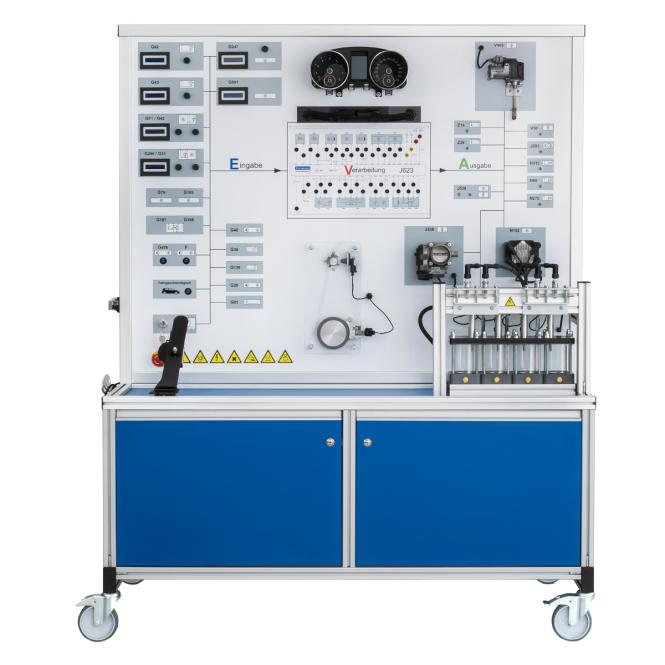

This functional model featuring gasoline injection technology allows the demonstration and analysis of functions, processes, faults, and measurement values just like on a real engine. All necessary original components and parts are clearly arranged on a color-printed front panel according to the EVA principle (Input – Processing – Output). An integrated fault simulation enables the creation of various learning scenarios. A component simulation allows the representation of different load conditions. The key advantage of this functional model is that it makes the functions and processes of a high-pressure accumulator injection system for gasoline engines visible in the classroom under realistic conditions — but without any emissions. All original components of the injection and fuel systems (excluding the high-pressure fuel pump, but including the in-tank pump) re fully operational and diagnostic-capable. Signals and measurement values can be taken directly at the central measuring field or read via the OBD interface using standard diagnostic tools.
Construction features: Layout according to the EVA principle: Input – Processing – Output
- TSI injection system based on VW technology, without a high-pressure pump and with stepless speed control
- Measurement of all relevant components and parts via 4 mm safety measuring sockets in the central circuit diagram measuring field

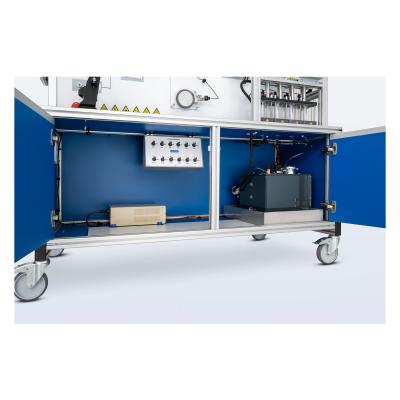

- Mobile setup for laboratory and workshop use, including a base cabinet with lockable doors
Subject to technical changes.
Standard equipment:
- Simos petrol injection system
- Control box with ignition start switch, emergency stop switch and OBD connection
- Fuel tank with original inline fuel pump
- Fuel level indicator via instrument cluster
- Decoupling of speed sensor with manual speed adjustment for load simulation
- Manually adjustable air mass for changing the air-fuel ratio
- Circuit diagram measuring field with 4 mm safety measuring sockets
- Front panel with colour digital print, circuit diagrams, components and symbols, writable with foil pens
- Displays for measured and set values
- Fault circuit with 24 realistic faults in lockable base cabinet
- Measurement of all relevant parts and components in central circuit diagram measuring field
- Diagnostic capability via OBD interface
- Ignition start switch
- Emergency stop switch
Optionally available:
- Interface for training measuring station
- Working with maintenance plans, circuit diagrams, circuit symbols, terminal designations, cables and cable connections
- Naming mechanical, electrical and electronic components, assemblies and systems
- Testing and repairing mechanical, electrical and electronic circuits and systems
- Selecting and using mechanical and electrical measuring and testing equipment
- Measuring and evaluating electrical quantities and signals
- Documenting work results and evaluating them by comparing them with calculated quantities and manufacturer specifications
- Using the capabilities of standard workshop diagnostic equipment
- Incorporating problem-solving strategies or alternatives into the diagnosis
- Documenting measured values, signals and error logs, and analysing and evaluating them
- Checking individual components and deciding on necessary repair measures
Learning areas:
- Basic level: Learning areas 5, 6 and 8
- Specialist level: Learning areas 11P and 12P
- Automotive mechatronics technicians and master mechanics in training and further education
- Power connection: 240 volt mains connection
- Dimensions: L x W x H 1,600 x 800 x 1,950 mm
- Weight: approx. 160 kg
Ready-to-use, mobile functional model including voltage-stabilised 12-volt switching power supply, data sheets, circuit diagrams, manual and operating instructions.
